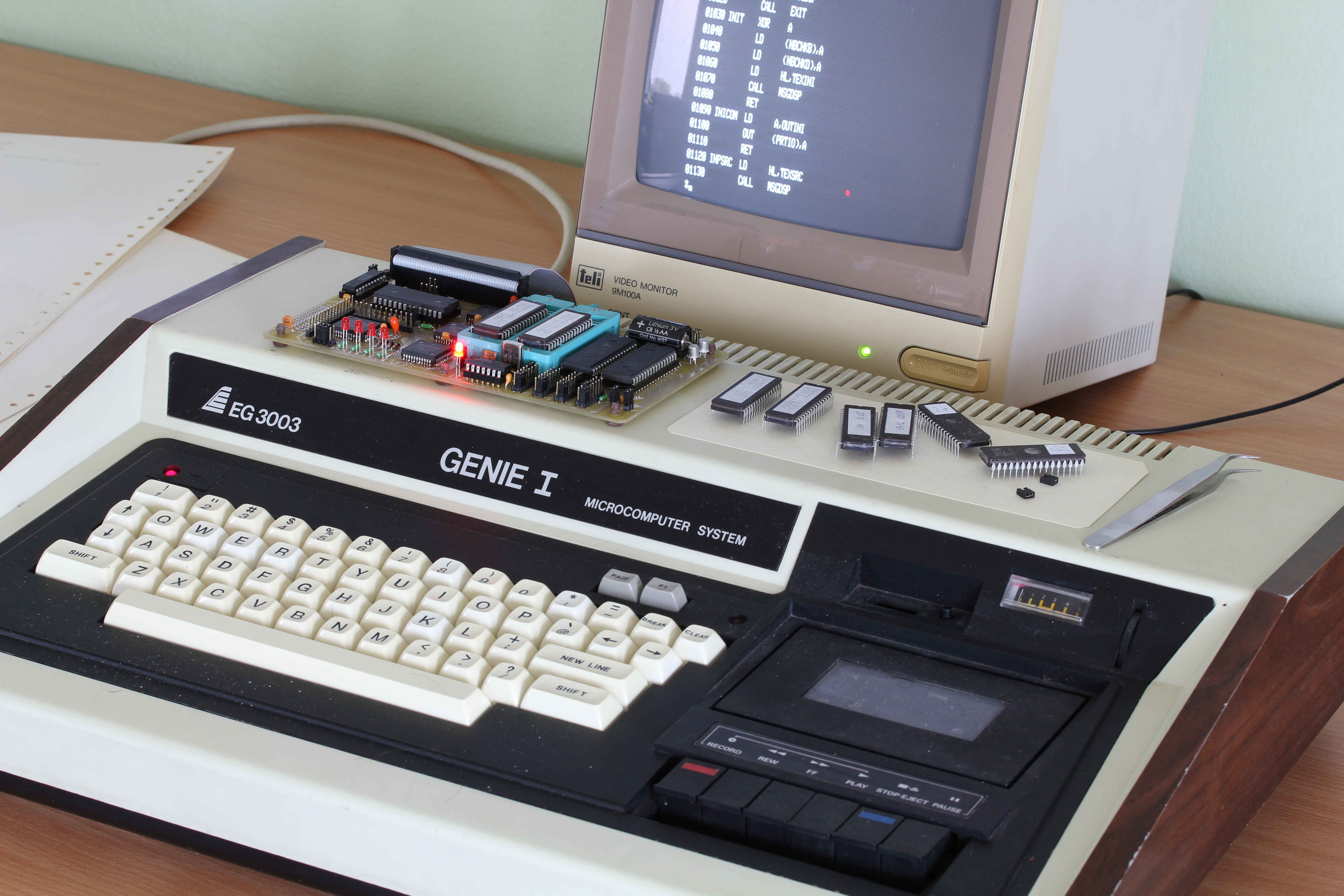

The card faithfully emulates the original Expander EG3014, including diskette drives for the Video Genie System EG3003 (TRS-80 clone).
The main motivation behind the creation of this card was to enable a fully-fledged and comfortable study of the development and capabilities of the original disk operating systems of these computers,
from their very beginning. Several disk operating systems and a large amount of software were created for these legendary personal computers in the late 70s and early 80s.
Although there are many great software emulators for these computers, they cannot replace the experience of working on a real computer (I really know what I'm talking about).
Without an Expander (primarily a floppy drive controller) and diskette drives, it's really impossible. That's why this alternative card was created.
So the goal was to develop a period expansion card as small as possible, which will faithfully and reliably emulate the Expander at the hardware level, including the diskette drives connected to it.
The basic functions of this card are:
The original expander was equipped with one of the first chips from Western Digital, the FD1771. This chip had implemented some functions (properties) that did not appear in later controllers, so it was difficult to simply replace it in the future. Our card aims for full emulation on the logical (sector) level, so that the necessary compatibility is achieved.
On the contrary, on the diskette drive side of the emulated FD1771, an interface for ROM/RAM memory chips is implemented replacing the old floppy disks. At first glance, it might appear to be a ROM/RAM disk, but in reality it is much more complicated. Although we don't have a physical recording magnetic layer and therefore don't have to worry about it, on the other hand, we lack this layer for the correct function of the controller.
As a result, all commands (functions of the original controller) except "Read Address", "Read Track", "Write Track" were implemented. These functions are primarily used for physical formatting and low-level copying of diskettes, which in our case is not interesting. Primary compatibility is verified on the major disk operating systems TRSDOS 2.3, NEWDOS/80 2.0 and LDOS 5.3.1 in versions designed for the Model I.
Of course, programs with direct access to the controller also work, but the above 3 low-level commands cannot be used.

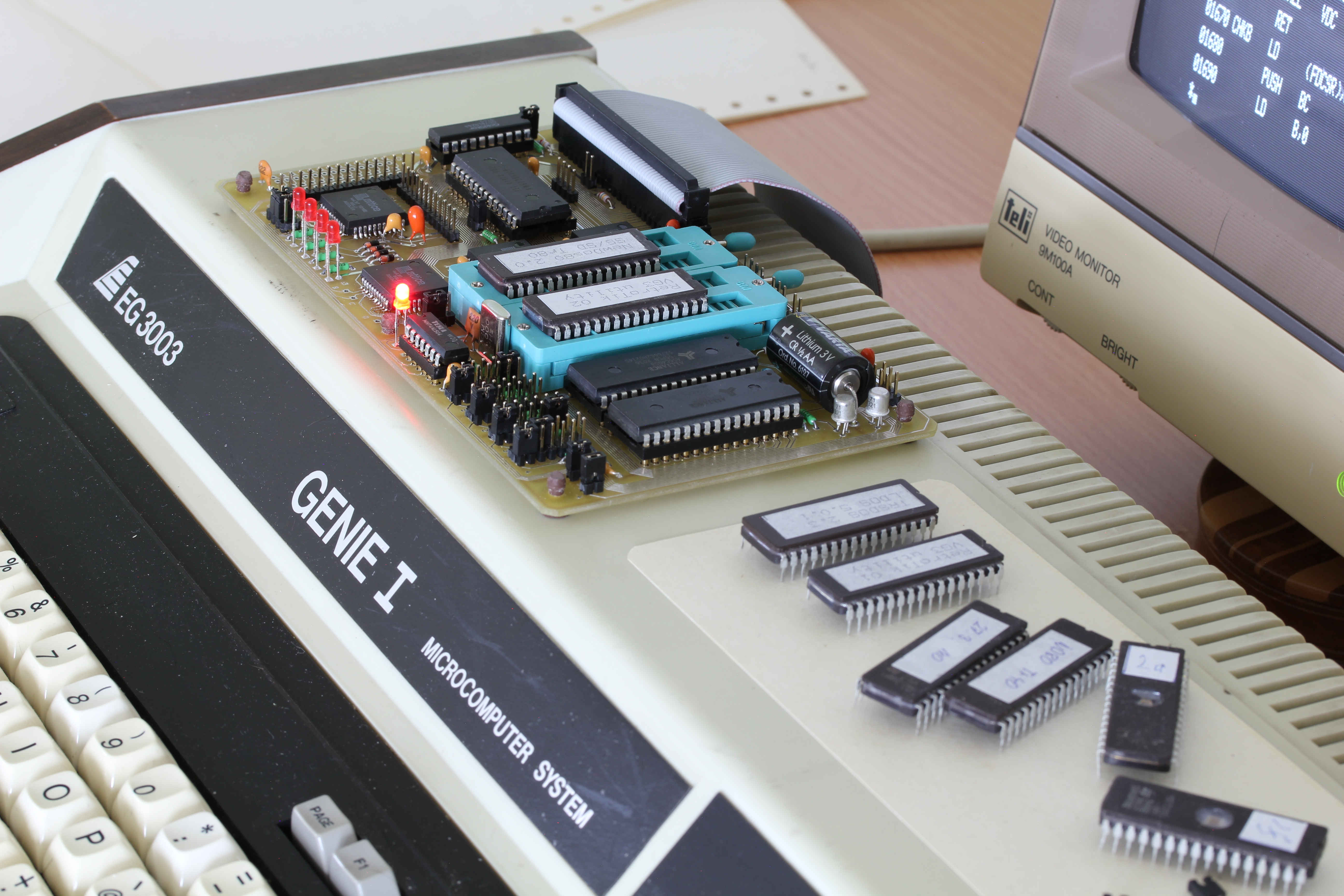

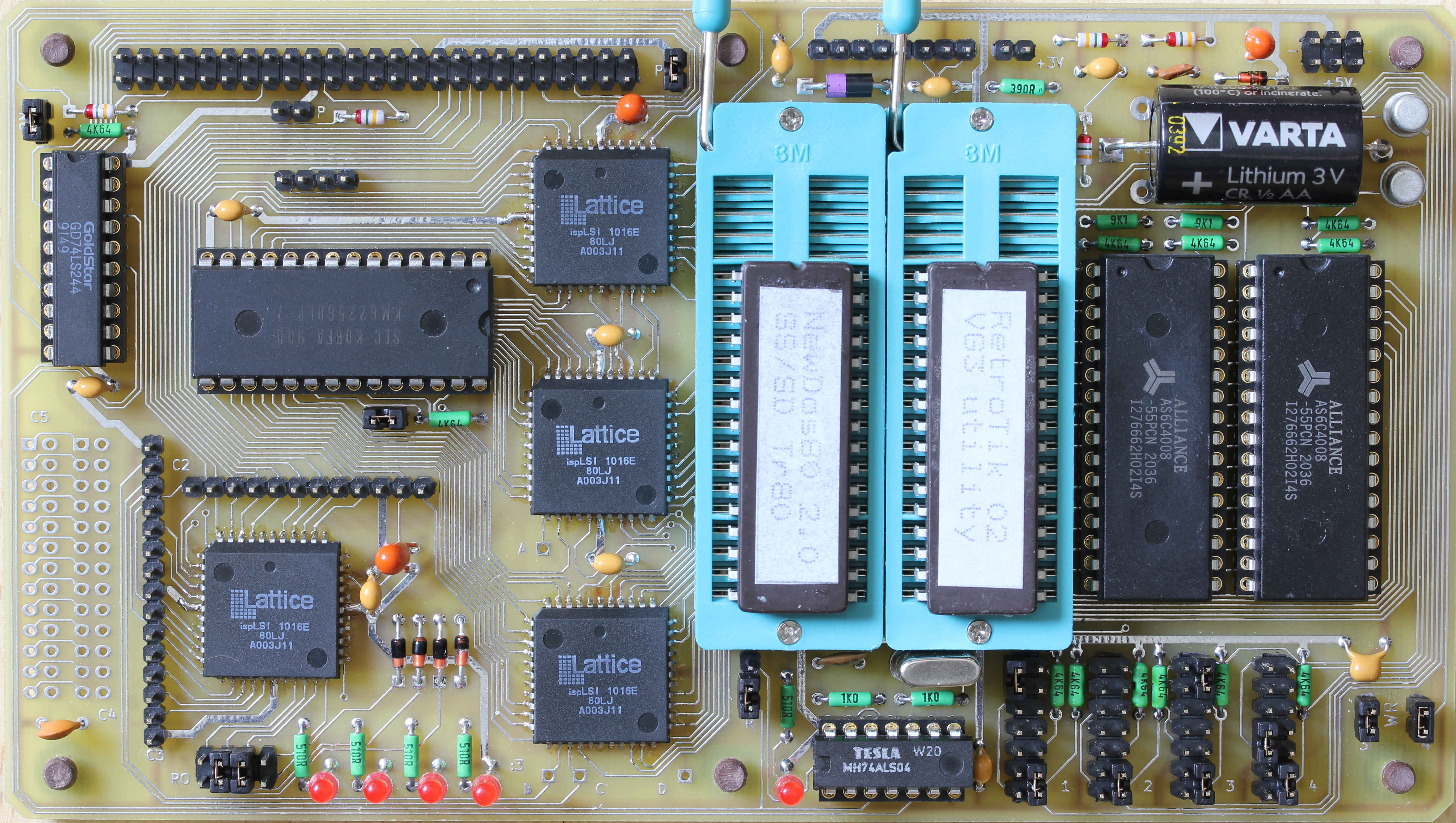

The card has two 40-pin sockets with so-called zero insertion force (ZIF, equipped with a lever). These are intended for ROM (EPROM) chip disks, i.e. permanently Read Only. The sockets are intended for circuits in DIL32 packages only and accommodate chips of sizes 128, 256 and 512 kB (for example 27100, 272001, 274001). Chip disks (memory) can be hot-swapped during operation, you just need to wait until they are not currently being read or written to (activity can be seen on the fitted signalling LEDs).
The other two standard sockets are intended for permanently backed-up RAM (SRAM) and are equipped as standard with a circuit (chip) with a capacity of 512 kB. The internal installed battery lasts at least 10 years with this connection, but in our other solutions these batteries have been working for over 30 years and still have enough energy and voltage to back up similar SRAM memories. These batteries will probably outlive us. The circuit around this memory is important, which guarantees high resistance and protection of the contents during sudden voltage changes (typically power up and sudden power off). For example, if you are writing and there is a power failure, then at worst the writes will not complete and only the currently written apartment will be left in an unknown state. Without this circuitry repeated testing with intermittent power led to other bytes being occasionally accidentally overwritten, albeit with a very low probability. After completing the circuit wiring, there were no accidental overwrites during repeated tests.
Each physical position (memory) can be set (jumper):
ROM/RAM chip disks have their geometry (format) determined by connection and jumper settings, but their maximum sizes are:
The maximum total capacity of a floppy disk is 16 x 256 x 128 (or 32 x 256 x 64), i.e. 524,288 kB. The real capacity is given by the chosen geometry given primarily by the DOS, so at 10 sectors of 256 bytes and at 80 tracks it's 204,800 kB. It is therefore optimal to choose a format with 16 sectors per track and side. But even in the case of a less efficient geometry, it will be possible to use the unused sectors (we are preparing examples and a utility).
Considering the portability of emulated floppy disks between individual DOS (primarily I mean NEWDOS/80 version 2.0 and LDOS version 5.3.1.) it is optimal to choose a large format with only 15 sectors per track and side. Although we will not use all 16 sectors, this option allows us to choose the allocation unit size of 5 sectors per GRANULE, which is the standard for NEWDOS/80. LDOS does have an optional GRANULE size, so it would be possible to use all 16 sectors per track and side, but it is limited to a maximum of 96 tracks. In addition, with the size of 8 sectors on GRANULE, we will certainly not read this format in NEWDOS/80.
With regard to the utilization of the maximum capacity of the diskette, with the compatible choice of 5 sectors per GRANULE, the following three large diskette formats are suitable:
NEWDOS/80 : PDRIVE,0,x,TI=C,TD=G,TC=96,SPT=15,TSR=3,GPL=3,DDSL=17,DDGA=3 LDOS 5:3.1: DCT <- C3 FB 45 07 0x FF 5F 0E 44 11 (x - valid drive number)
NEWDOS/80 : PDRIVE,0,x,TI=C,TD=G,TC=128,SPT=15,TSR=3,GPL=3,DDSL=17,DDGA=3 LDOS 5:3.1: DCT (does not support) (x - valid drive number)
NEWDOS/80 : PDRIVE,0,x,TI=C,TD=G,TC=64,SPT=30,TSR=3,GPL=6,DDSL=17,DDGA=6 LDOS 5:3.1: DCT <- C3 FB 45 47 6x FF 3F 0E 44 11 (x - valid drive number)
So why consider double-sided floppy disks when the total usable capacity when 3 drives are installed is lower or the same? Of course, in addition to the reason for studying the possibilities of individual DOS, there is also one practical reason, and that is the size of the directory, more precisely the maximum number of files on the diskette. By default, the directory of these old floppy disks is always stored on track 17, and the maximum number of files on a diskette is: (number of sectors per track - 2) * 8. One directory entry occupies 32 bytes, so one sector can fit 256/32 = 8 records. And why is the number of sectors -2? The first sector always contains the GAT table (Granule Allocation Table) and the second sector the HIT table (Hash Index Table), and the remaining sectors on the track are used for the own directory.
I will write about the format of diskettes at the logical (sector) level for individual DOS in more detail later. At the moment, however, I will reveal that for SSDD and DSDD disks with 15 sectors per track and side, in order to achieve full compatibility between NEWDOS/80 and LDOS, it is necessary to write 1 byte into the sector with the HIT table (address 1FH within the sector), which when checked by the dircheck utility from LDOS, it is marked as faulty. But there's nothing to worry about, it really won't hurt anything (we'll only reduce the number of possible files on the diskette by -1).
So if we transfer the formula to individual formats, we get:
For the overall usability of the files on the diskette, we must also remember that DOS always reserves the first two entries in the first 8 sectors of the directory for system files (SYS), so in reality we have available for the other files:
So the choice/preference of these large disk formats makes sense. Finally, an overview recapitulation of the total capacities and the maximum number of files when the drives are fully loaded:
Our mini Expander was developed to fulfill several essential requirements:
Putting all these requirements together was not quite so simple, as evidenced by the total time of development and testing, which eventually exceeded the originally planned period of six months. Several major decisions had to be made during development, and one of those decisions was whether to place a communication port on the mini Expander, and if so, which one. The complexity of the overall emulation of the FD1771 controller proved critical, considering the capabilities of the first programmable gate arrays of the time (limited amount of programmable logic and limited number of pins). In the final it was clear, either serial or parallel port, both at the same time cannot be implemented. The choice of a serial port was clearly driven by the need for data backup and recovery. On the other hand, the need for presentations and personal demonstrations of the use of the computer spoke for choosing a parallel port, where the printer has always been its basic peripheral, without which it doesn't make much sense. Of course, it's always possible to implement ports as standalone extensions, but that was against the intent of a compact solution. In the end, the parallel port won out. There were several reasons for this, but the possibility of a full-fledged implementation of the interface for the printer while maintaining the necessary size and power supply options proved to be essential.
But what about serial communication, without which data cannot be backed up or restored? There is nothing to worry about, our mini Expander really only decodes/addresses for the parallel port, but its design allows you to install an expansion module (board) with a parallel port or an expansion module (board) with a serial interface, but in a slightly different form than you are probably used to. For standard serial communication, in addition to the address decoder, we need a suitable clock (crystal oscillator), implement a UART-type circuit and, of course, obtain the necessary voltage, typically +-6V to +-12V. And that was already beyond the possibilities of programmable circuits, the required size of the mini Expander, but also the possibility of limited power supply directly through the expansion connector (expansion) of these old computers.
Our solution enables synchronous communication with a counterparty that has a standard RS-232 communication port. Only control signals DTR, RTS (input signals) and DSR, CTS (output signals) are used for communication. Appropriate connection of the expansion module and a suitable communication protocol enable two-way communication without implementing a UART circuit, without the necessary communication voltage (typically +-6V to +-12V) and without the need to set the communication speed (it is a fully synchronous protocol using 2 input and 2 output pins). Of course, a standard serial modem cable (uncrossed wires) with a standard CANON 25-pin male connector on the connection side to our mini Expander is used.
The maximum transmission speeds are related to the selected communication protocol and the hardware capabilities of the computers. Sending/backing up is always faster than receiving/refreshing from our old computer's perspective. This is due to the fact that when we transmit, the superior computer (receiver) primarily supplies us with the necessary voltage +-6V to +-12V via the DTR and RTS signals and confirms the reception of the next bit only by switching the levels between DTR and RTS. Only different levels on these signals are always needed to successfully power the module. On the contrary, if we receive, the DTR and RTS signals are primarily used for communication and to obtain the necessary voltage for subsequent confirmation, after all, we need a little more time (to obtain the necessary voltage for the voltage pump on our module).
In our current use (python version of the communication program on the parent computer) the following transfer rates are achieved:
Yes, it is not a dizzying speed, but, for example, to back up a file with a size of 64 kB, we need about 115 seconds, which is not so much considering the possibilities of that time. On the contrary, the advantage of this solution is its successful use for communication where a serial port is not available (really only 2 input and 2 output pins with TTL level and our small serial module are enough).
Since the emulation of the floppy disk takes place at the logical (sector) level, programs that use the low-level functions of the controller ("Read Address", "Read Track", "Write Track") cannot be used. These low-level functions are typically used for physical formatting or low-level copying of diskettes. Therefore, the following additional utilities are part of the mini Expander.
LDOS Ready DIR /CMD:2 Drive :2 RETROTIK 09/16/92 80S1 Free= 116.2/ 200.0 Fi= 36/ 64 Filespec Attrib LRL #Recs EOF DE File Size MOD Date Time ---------------------------------------------------------------- BACDRV/CMD ----+ AL 256 4 67 1 s= 1.2 16-Sep-84 CLRDSK/CMD ----+ AL 256 4 35 1 s= 1.2 16-Sep-84 CPDRV/CMD ----+ AL 256 5 51 1 s= 1.2 16-Sep-84 CRTDSK/CMD ----+ AL 256 8 154 1 s= 2.5 16-Sep-84 PCOMIN/CMD ----+ AL 256 4 14 1 s= 1.2 16-Sep-84 PCOMOUT/CMD ----+ AL 256 3 122 1 s= 1.2 16-Sep-84 RESDRV/CMD ----+ AL 256 5 239 1 s= 1.2 16-Sep-84 LDOS Ready
All supplied utilities are intended only for our mini Expander and can be used on most DOS designed for these computers. They are primarily used and tested in TRSDOS 2.3, NEWDOS/80 2.0, LDOS 5.3.1, but there is no reason why they should not work under other DOS as well.
The basic utility is CRTDSK/CMD, which is intended for the initial initialization of the RAM chip disk. With this utility, it will de facto format the emulated diskette in the desired geometry and you can use it from then on. The actual initialization overwrites only tracks 0 and 17 on the emulated diskette, and the other sectors remain unchanged (they are not intentionally overwritten). Therefore, if we subsequently DUMP the sectors of the diskette, there may be original old data, or on the contrary, random data and not the expected e5H or 00H. If you need to completely lubricate (clean) the diskette, there is another utility for that.
The utilities currently support the following diskette geometries (formats):
All the geometries listed have this in common:
Of course, other possible geometries could be chosen, but the limitations mentioned above apply (maximum 16 sectors per track per side, maximum 128 tracks for a single-sided and 64 tracks for a double-sided diskette).
One of the other interesting geometries could be the SSSD-64 or SSDD-64 formats. But for now, I'll leave it up to you (your thinking) what advantage these geometries have in terms of use on our mini Expander.
The possible extension of our utilities with other diskette geometries will not be a problem.
LDOS Ready CRTDSK CREATE DISK (Ver:0.30) Target (0..3):1 1) Sides:1 ,Tracks: 40, Sectors:10 (SS,SD) 2) Sides:1 ,Tracks: 80, Sectors:10 (SS,SD) 3) Sides:1 ,Tracks: 80, Sectors:15 (SS,DD) 4) Sides:1 ,Tracks: 96, Sectors:15 (SS,DD) 5) Sides:1 ,Tracks:128, Sectors:15 (SS,DD) 6) Sides:2 ,Tracks: 64, Sectors:30 (DS,DD) Select:3 Any data on drive :1, will by destroyed! Continue?:Y START... INI:...............OK INI:...............OK WRT:.....OK ...END LDOS Ready
Another utility copies the entire contents of the emulated diskette (all sectors according to the selected geometry) from the source drive to the target drive (so we copy 1:1 at the sector level). A RAM chip disk can also be initialized in this way, but a much more common use is to copy the system boot disk from a ROM chip disk to a RAM chip disk. Booting an emulated disk with a RAM chip disk allows you to change/debug the boot disk's DOS configuration. The configuration is usually stored in the 3rd sector on the 0 track of the diskette (but not only there). In this way, for example, you can choose the format of other diskettes according to individual drives (we often use this in our retro lab).
Unlike the initialization using the CRTDSK utility, the operation of copying the entire disk takes longer, and for the large geometry of DSDD (15 sectors on 64 feet on both sides of the disk), the time required for execution is around 210 seconds (approx. 19 kBit/sec). That time is not much shorter than a real floppy disk with a real controller. This is primarily due to the hardware capabilities of the old computer (the standard original connection of the controller does not support DMA) and a little intentionally to our own design of this mini Expander (we are after all a "faithful emulation").
NEWDOS/80 READY CPDRV COPY DISK DRIVE (Ver:0.24) Source (0..3):0 Target (0..3):1 1) Sides:1 ,Tracks: 40, Sectors:10 (SS,SD) 2) Sides:1 ,Tracks: 80, Sectors:10 (SS,SD) 3) Sides:1 ,Tracks: 80, Sectors:15 (SS,DD) 4) Sides:1 ,Tracks: 96, Sectors:15 (SS,DD) 5) Sides:1 ,Tracks:128, Sectors:15 (SS,DD) 6) Sides:2 ,Tracks: 64, Sectors:30 (DS,DD) Select:1 Any data on drive :1, will by destroyed! Continue?:Y S..........T..........T.. ..T..........TE ALL COPY OK! NEWDOS/80 READY
This third utility allows you to permanently erase the contents of the emulated diskette in the selected drive. The utility completely overwrites all sectors according to the selected format with byte 00H. Unlike the first two utilities mentioned above, the disk geometry is not directly selected here. By default, the utility erases the first 10 sectors in the first 80 feet. But if you choose "Clear everything" it will allow you to erase all 16 sectors on 128 tracks for a single-sided diskette, or 64 tracks for a double-sided diskette. It probably goes without saying that there is no possible way to go back.
LDOS Ready CLRDSK CLEAR DISK (Ver:0.13) Target (0..3):1 Clear everything?:Y Double sided?:Y Any data on drive :1, will by destroyed! Continue?:Y S...............T.. ..T...............TE ALL CLEAR OK! LDOS Ready
Our mini Expander uses ROM and RAM chip drives::
Our mini Expander allows you to install an expansion module (plate). We currently have two modules, the first one which allows the printer to be connected via a parallel cable and the second which allows the host computer to be connected for two-way data exchange via a serial modem cable. The chosen serial communication solution can be described as fully synchronous communication without the use of a UART-type circuit on the side of the mini Expander. The superior computer serves simultaneously to power the communication part of our serial module. More details can be found in the separate section Serial Synchronous Communication Module.
These two basic communication utilities allow you to send or, conversely, receive a selected file with a counterparty (with a superior computer). We always first enter the full name of the file including the drive number (for example "PCOMIN/ASM:1" and then we are prompted to activate the transmitter/receiver (communication program of the superior computer). After confirming the activation, the communication itself will take place. The initial activation of the communication program of the superior computer is not only related to initialization control signals, but also with the power supply of our module.
If, like me, you develop, describe or document on these old computers, I recommend regularly backing up new versions of programs, manuals and other created files. This recommendation is not related to our mini Expander, which achieves very high reliability compared to the real Expander with real disks. Since the completion of the development of the mini Expander, during the entire period of about 8 months of intensive testing, not a single problem with the loss of a single byte appeared. But it is related to the occasional imperfection of some versions of the original programs, and then there is our human factor, when we all occasionally make a mistake (we overwrite our file with different content, i.e. we make a mistake in the file name).
NEWDOS/80 READY PCOMOUT COMMUNICATION OUTPUT (Ver:0.14) IniCom File name:TEST/TXT:2 Prepare receiver then press any key (X Cancel) OK... ....................... .....................END NEWDOS/80 READY
LDOS Ready PCOMIN COMMUNICATION INPUT (Ver:0.18) IniCom File name:TEST/TXT:2 File exists! Prepare transmitter then press any key (X Cancel) OK... ................. .....................END LDOS Ready
These other two communication utilities will make it possible to back up or restore the entire content of the selected emulated diskette (a complete copy of all sectors according to the selected geometry, so again we can say a 1:1 copy). The utilities support the geometries described above (see the CRTDSK utility). However, there is no problem to restore geometries with a lower number of tracks within the selected SSSD, SSDD, DSDD formats. For example, if you choose to restore the SSSD-80 format, you can choose, for example, an SSSD-35 image (typically a TRSDOS 2.3 system diskette) on the host computer, and the receiving part of the RESDRV utility itself will alert you to the detection of the exit sequence, and you will complete the transfer by simply confirming the exit sequence.
A special communication protocol is used for communication, described below in a separate chapter. As part of our support for the mini Expander, software is gradually being developed for superior communication computers according to platforms (as we have them in our museum). The original verification software was created on the Linux platform under the Python scripting language. It's not exactly a platform for the museum, although our hardware on which it runs is slowly becoming so (PC/AT with a 386SX processor), but it was probably the simplest solution at the time. We are definitely planning to develop software for the MS-DOS (PC/XT), RSX-11 (PDP-11), UNIX type OS and probably for the AMIGA OS as well. The PDP-11 is really the central computer in our museum/lab and therefore it makes sense to use it for period backup and data recovery (it will be a typical period superior computer).
LDOS Ready BACDRV BACKUP DISK DRIVE (Ver:0.19) IniCom Source (0..3):1 1) Sides:1 ,Tracks: 40, Sectors:10 (SS,SD) 2) Sides:1 ,Tracks: 80, Sectors:10 (SS,SD) 3) Sides:1 ,Tracks: 80, Sectors:15 (SS,DD) 4) Sides:1 ,Tracks: 96, Sectors:15 (SS,DD) 5) Sides:1 ,Tracks:128, Sectors:15 (SS,DD) 6) Sides:2 ,Tracks: 64, Sectors:30 (DS,DD) Select:1 Prepare receiver then press any key (X Cancel) S..........T..........T.. ..T..........TE ALL BACKUP OK! LDOS Ready
NEWDOS/80 READY RESDRV RESTORE DISK DRIVE (Ver:0.24) IniCom Target (0..3):1 1) Sides:1 ,Tracks: 40, Sectors:10 (SS,SD) 2) Sides:1 ,Tracks: 80, Sectors:10 (SS,SD) 3) Sides:1 ,Tracks: 80, Sectors:15 (SS,DD) 4) Sides:1 ,Tracks: 96, Sectors:15 (SS,DD) 5) Sides:1 ,Tracks:128, Sectors:15 (SS,DD) 6) Sides:2 ,Tracks: 64, Sectors:30 (DS,DD) Select:1 Any data on drive :1, will by destroyed! Prepare transmitter then press any key (X Cancel) S..........T..........T..........T.. ..T Termination sequence detected prematurely, continue?:N Canceled! NEWDOS/80 READY
Of course, we also provide all supplied utilities, as well as the communication software of the superior computer, in the source code.
The delivery of the mini Expander includes a ROM chip disk (EPROM) with our "RetroTik Utility". This disk is in SSSD-80 format (10 sectors per track, 80 tracks). With this format, the remaining sectors of the disk chip on the track are not used, therefore we equipped this disk with its own bootloader and placed our developed diagnostics only for our mini Expander in the free sectors.
Diagnostics was developed to:
Our printed circuit board with the designation CZRT-VG3-0103 (the base of the mini Expander) has a lead HAL (SnPb) surface treatment and, of course, lead tin is used when mounting it. The main reason is the fitting of period components and the use of period production technology. Even if we use new (unused) period components, often more than 30 years old, this is probably the only option to really produce quality products. It is probably no secret that, for example, this technology is still used for production in the areas of aviation, the space industry, and medicine. We always thoroughly test all period components before installation, and we always use the manufactured card intensively for several days and repeatedly test it. Nevertheless, in principle we only have to provide a limited warranty precisely because of the use of period components. However, our long-term experience with the use of period components and period production is very good. If the user has any doubts about the functionality, this diagnostic is a great helper.

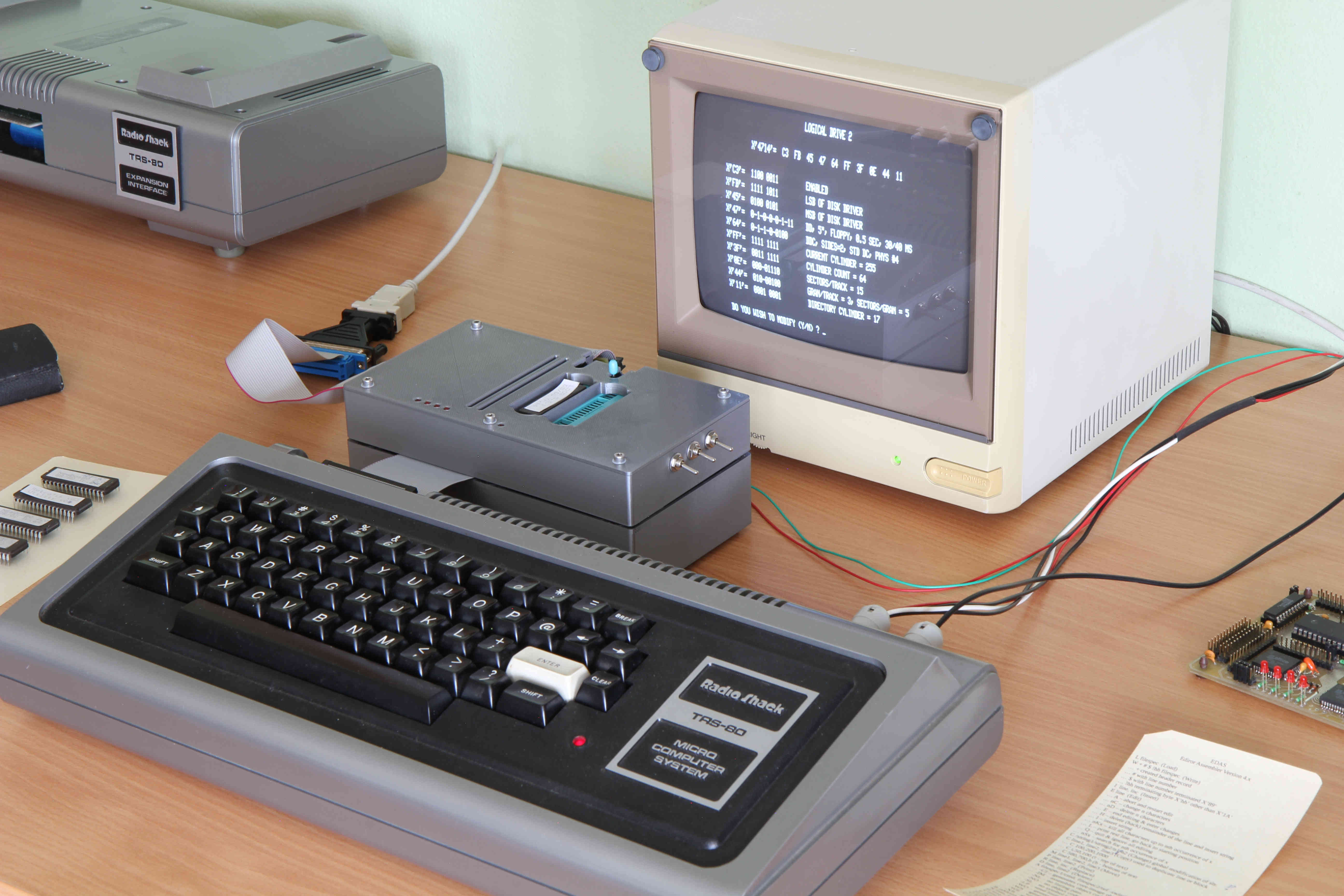

Diagnostics was successfully used when testing the mini Expander on other old pieces of computers compatible with the legendary TRS-80 computer. Repeatedly, a fault that did not manifest itself (unreliable conductive contacts of the direct connectors of computers, or insufficiently stable/hard original sources of these computers) was diagnosed in this way.
Start the diagnostics as follows:
After the memory test is complete, you should be presented with the basic diagnostics screen:
RETROTIK DIAGNOSTICS ROM DISK (V.:03) ------------------------------------- MENU: 1) CHECKING FLOPPY CONTROLLER 2) DISKETTE DRIVES SELECTION CHECK AND STATUS 3) CHECKING INTERRUPT 4) RESTORE DISKETTE (RAM CHIP DISK) FROM SERIAL PORT SELECT:
This option hides the basic diagnostics of our mini Expander. This is a complete test of the FD1171 emulated disk controller. The basic registers of the controller are gradually tested, then the control of the generation of index pulses and subsequently all implemented commands except the write one.
CHECKING FLOPPY CONTROLLER TRACK REGISTER: .......OK SECTOR REGISTER: ....OK DATA REGISTER: ........OK INDEX: ................................OK CMD RESTORE: ............OK CMD SEEK: ............OK CMD STEP: +............-............OK CMD FORCE INTERRUPT: ................................OK CMD READ: ........................................OK FINISH (PRESS ANY KEY TO CONTINUE)
Using this option, all drives (0 to 3) are sequentially addressed and the following information is obtained for each drive:
The check does not take place immediately after selection, but only after pressing any button. This allows the ROM chip disk(s) in the socket with the lever to be replaced if necessary before starting the test.
DISKETTE DRIVES SELECTION CHECK AND STATUS STARTING (PRESS ANY KEY TO CONTINUE) DRIVE 0 - ACTUAL SETTING: READ/WRITE - CHECKING ........ DISKETTE: PRESENT .. WRITABLE: NO DRIVE 1 - ACTUAL SETTING: READ/WRITE - CHECKING ........ DISKETTE: PRESENT ... WRITABLE: YES DRIVE 2 - ACTUAL SETTING: READ/WRITE - CHECKING ........ DISKETTE: PRESENT .. WRITABLE: NO DRIVE 3 - ACTUAL SETTING: READ-ONLY - CHECKING ........ DISKETTE: BLANK .. WRITABLE: NO FINISH (PRESS ANY KEY TO CONTINUE)
Using this option, the correctness of interrupt generation for individual functions of our mini Expander will be verified gradually. First of all, there are interrupts from the timer, and then the generation or non-generation of interrupts at different states of the progress of individual commands of the disk controller is monitored.
CHECKING INTERRUPT CLOCK: .................................................. OK FLOPPY DISK CONTROLLER: - CMD TYPE I: ............................................. OK - CMD TYPE II: ............................................ OK - CMD TYPE IV: .................. OK FINISH (PRESS ANY KEY TO CONTINUE)
This option was added to the diagnostics only afterwards, but its usability proved to be very beneficial. It is essentially the aforementioned RESDRV/CMD utility, which does not have to be run via a functional DOS, but is run directly within our ROM chip disk RetroTik utility.
It is currently used for:
RESTORE DISK DRIVE (Ver:0.20) IniCom Target (0..3):2 1) Sides:1 ,Tracks: 40, Sectors:10 (SS,SD) 2) Sides:1 ,Tracks: 80, Sectors:10 (SS,SD) 3) Sides:1 ,Tracks: 80, Sectors:15 (SS,DD) 4) Sides:1 ,Tracks: 96, Sectors:15 (SS,DD) 5) Sides:1 ,Tracks:128, Sectors:15 (SS,DD) 6) Sides:2 ,Tracks: 64, Sectors:30 (DS,DD) Select:4 Any data on drive :2, will by destroyed! Prepare transmitter then press any key (X Cancel)
